Austrian Audio OC818 Dual Set Plus - Large Diaphragm Condenser Microphone (Matched Pair, Black)

Austrian Audio OC818 Dual Set Plus - Large Diaphragm Condenser Microphone (Matched Pair, Black)

$3,529.00
Skip to product information
Austrian Audio OC818 Dual Set Plus - Large Diaphragm Condenser Microphone (Matched Pair, Black)

Austrian Audio OC818 Dual Set Plus - Large Diaphragm Condenser Microphone (Matched Pair, Black)

SKU:
17002F11050
$3,529.00

Taxes included, free shipping NZ wide.

Questions? Spot a better price? Contact Us

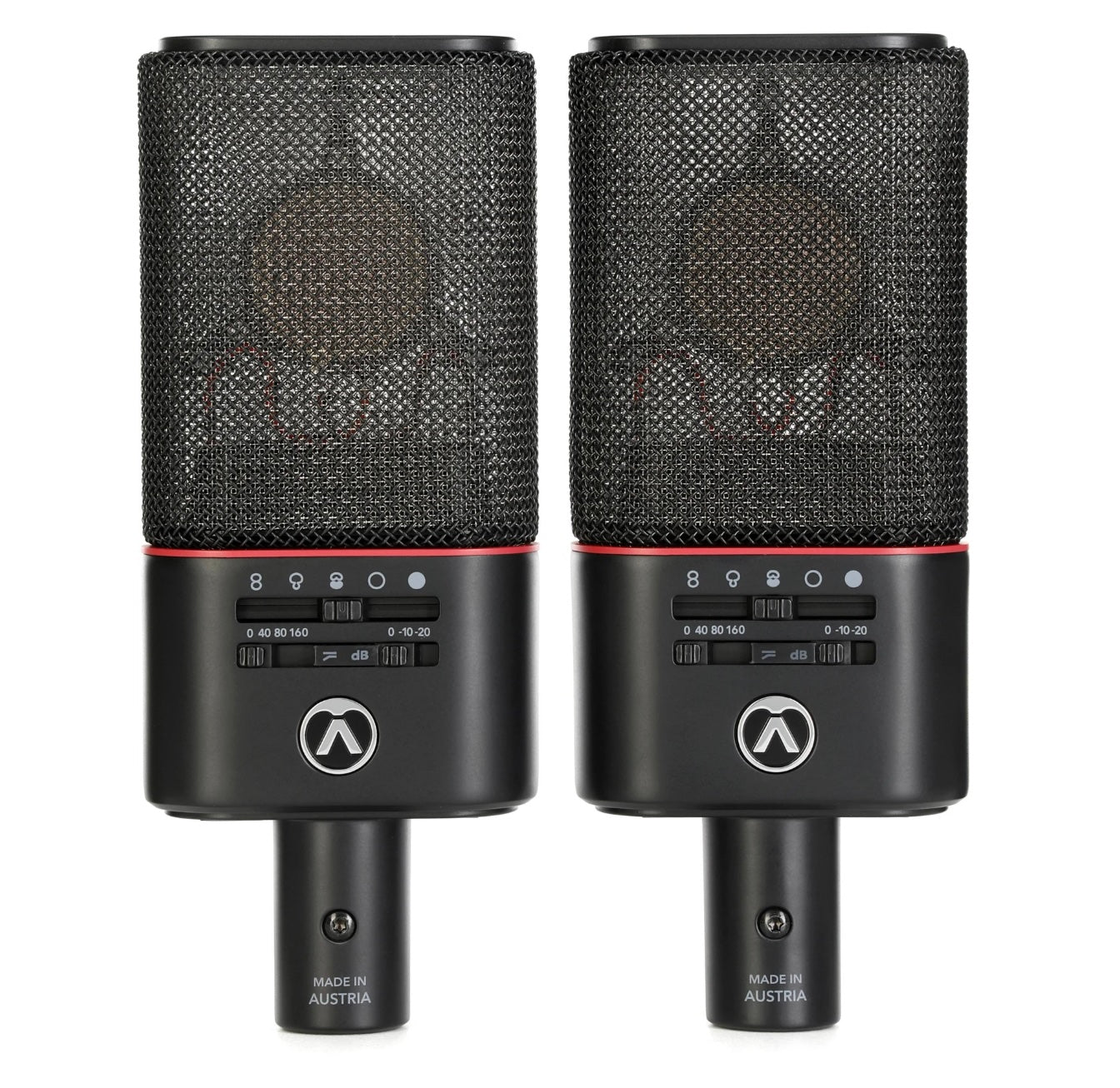

The Austrian Audio OC818 Dual Set Plus pairs two factory-matched OC818 large-diaphragm condensers into a complete stereo recording system, handcrafted in Vienna around Austrian Audio's CKR12 capsule, a modern reworking of the classic CK12 design. Each mic offers dual outputs, capturing the front and rear diaphragms separately, which opens up polar-pattern shaping after the fact rather than committing to one pattern at the point of recording among other wirelessly adjustable settings.

Each OC818 is switchable between cardioid, omnidirectional, figure-8, and hypercardioid, alongside custom programmable patterns. Paired with Austrian Audio's free PolarDesigner plug-in, the dual-output signal can be reshaped into custom polar patterns across five separate frequency bands after recording, letting you fix bleed, adjust width, or change a mic's character in the mix rather than only at the source. An optional OCR8 Bluetooth dongle adds real-time wireless control over polar pattern, pad, and high-pass filter settings from the PolarPilot app, useful for adjusting a mic without walking over to it, though switching itself stays entirely in the analogue domain, only the bias voltage is what's being remotely controlled, not the audio signal, so you get the best of both worlds.

For stereo work specifically, Austrian Audio factory-matches the pair for consistent frequency response and stable phase between the two mics, and the set includes a stereo bar for precise physical alignment, important for accurate imaging on techniques like X-Y or ORTF.

The Austrian Audio OC818 is an incredibly versatile mic that sounds fantastic on pretty much any source. Engineers at GOBIRD recommend this mic.

Key features

  • 2x factory-matched OC818 large-diaphragm condenser microphones
  • CKR12 capsule (modern reworking of the classic CK12 design)
  • Dual-output design, front and rear diaphragm captured separately
  • 4 main polar patterns (cardioid, omni, figure-8, hypercardioid) plus custom programmable patterns
  • Compatible with free PolarDesigner plug-in for post-recording pattern shaping across 5 frequency bands
  • Optional OCR8 dongle for real-time wireless control via PolarPilot app (analogue signal path, remote bias control only)
  • Includes stereo bar for precise mic alignment

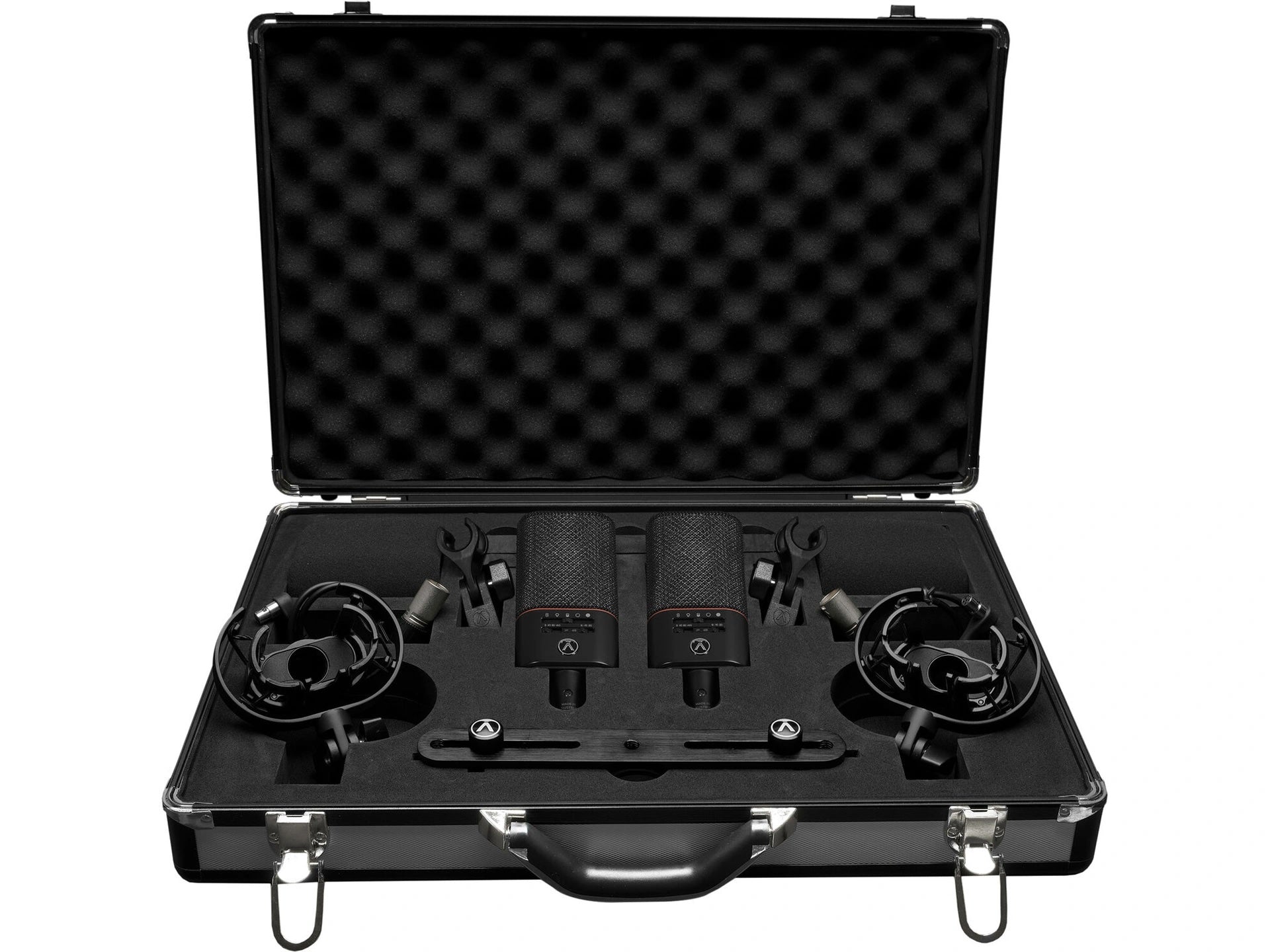

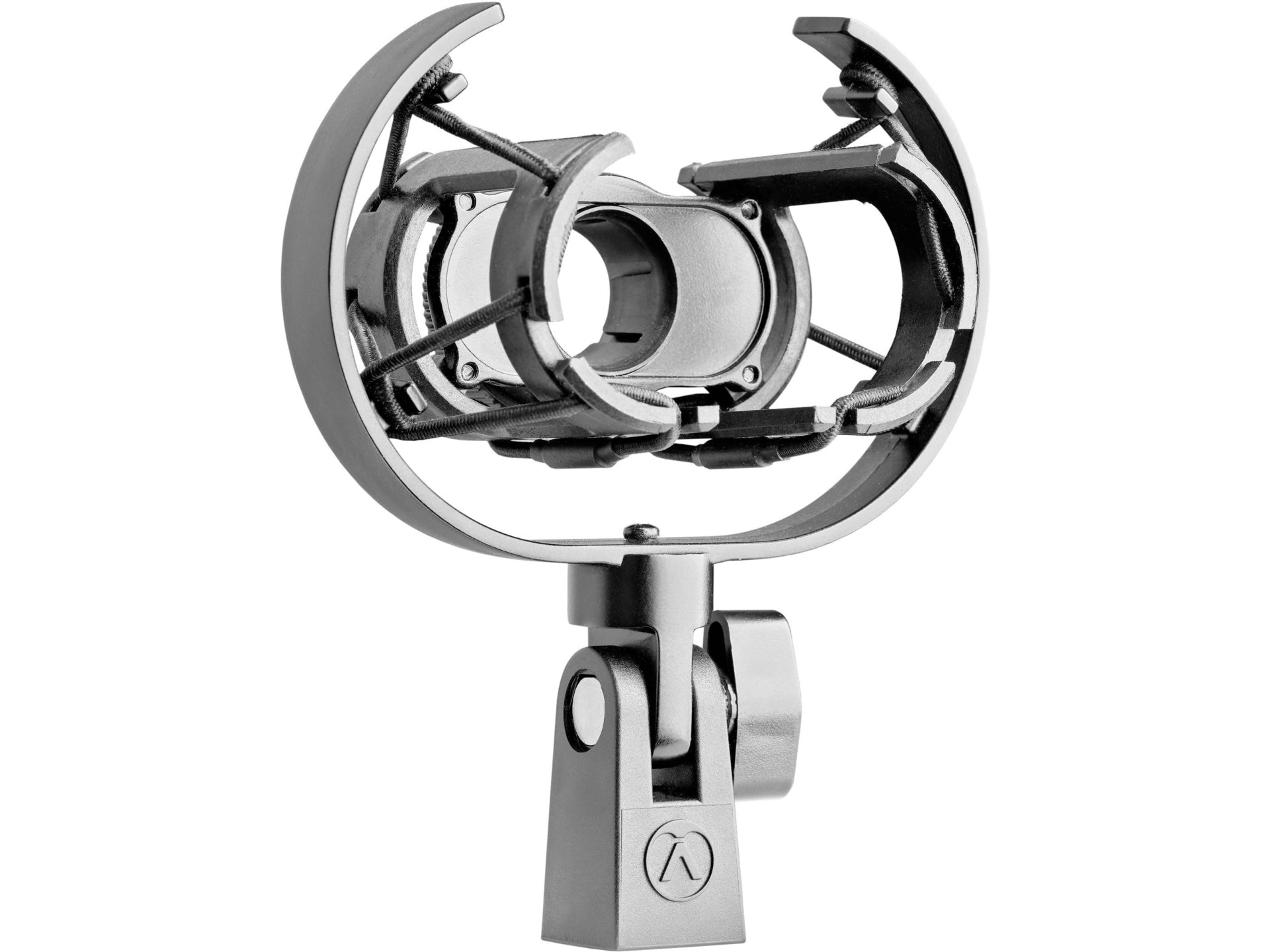

OC818 Studio Set contains: 2x OC818 microphone, 2x OCS Spider Mount Suspension, 2x OCW8 Foam Windshield, 2x OCH8 Mic Clip, 2x OCC8 Mini XLR Cable + Cable clip, Protective Carry Case.


Specifications (each):

  • Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
  • Frequency range: 20 Hz – 20 kHz
  • Sensitivity (all directions): 13 mV/Pa
  • Equivalent noise level: 9 dB SPL (A)
  • Max. SPL: 148 dB SPL (158 dB SPL)
  • Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
  • Switchable pad: -10 dB, -20dB
  • Impedance: 275 Ω (symmetrical)
  • Load impedance: > 1 kΩ
  • Supply voltage: 48 V (< 4mA, typical 2.1mA)
  • Main connector: XLR 3 pin
  • Second connector: Mini XLR 5 pin connector for back membrane
  • Dimensions: 157 x 63 x 36 mm
  • Weight: 360g

Alternate Options:

For Dual Set in Silver see: Austrian Audio OC818 Dual Set Plus (Matched Pair, Silver)
For single OC818 in Silver see: Austrian Audio OC818 Studio Set (Silver)
For single OC818 in Black see: Austrian Audio OC818 Studio Set (Black)
For fixed cardioid see: Austrian Audio OC18
