Vanguard Audio Labs V13 Gen2 Tube Condenser Microphone
SKU: V 13 gen2
Questions? Spot a better price? Contact Us
The Modern Tube Standard
The V13 gen2 is Vanguard Audio Labs' flagship large diaphragm tube condenser, designed with the character of vintage tube mics in mind while using modern tech to engineer a stunning mic that captures every detail thanks to Vanguards famously low tube microphone noise floor (now even lower with the V13 gen2!).
Gorgeous Sound
The Vanguard V13 gen2 is silky, detailed, and warm, everything you could want from a LDC tube mic. It has a smooth top end that can be compared to a 251 or C12 with the body and low end weight of a U47 or U67. Featuring nine selectable polar patterns via the external PSU, the V13 gen2 is extremely versatile and shines on all sorts of sources, from vocals and acoustic instruments to drum overheads and even room mics, the Vanguard V13 gen2 is a true workhorse.
Overspecced by Design
Featuring an extra large 34mm edge-terminated, gold-sputtered Mylar dual-capsule that's been hand tuned for the V13's custom voice alongside a circuit with premium, overspecced components and a hand selected European tube - The Vanguard V13 gen2 is engineered to deliver a sound well beyond its price point! (listen to some shootouts to make up your own mind, we're sure you'll agree).
Vanguard spared no expense with their upgrades, using low-noise audiophile-grade resistors, Neutrik connectors on all points and an ultra-linear, fully shielded, custom-wound, dual-bobbin humbucking transformer for the output stage to drive long cable runs, making the V13 gen2 one of the quietest tube microphones ever made.
Vanguard also uses deep cycle cryogenic treatment on their critical components to improve the lifespan and performance of the V13, this thing is built to last.
Accessories

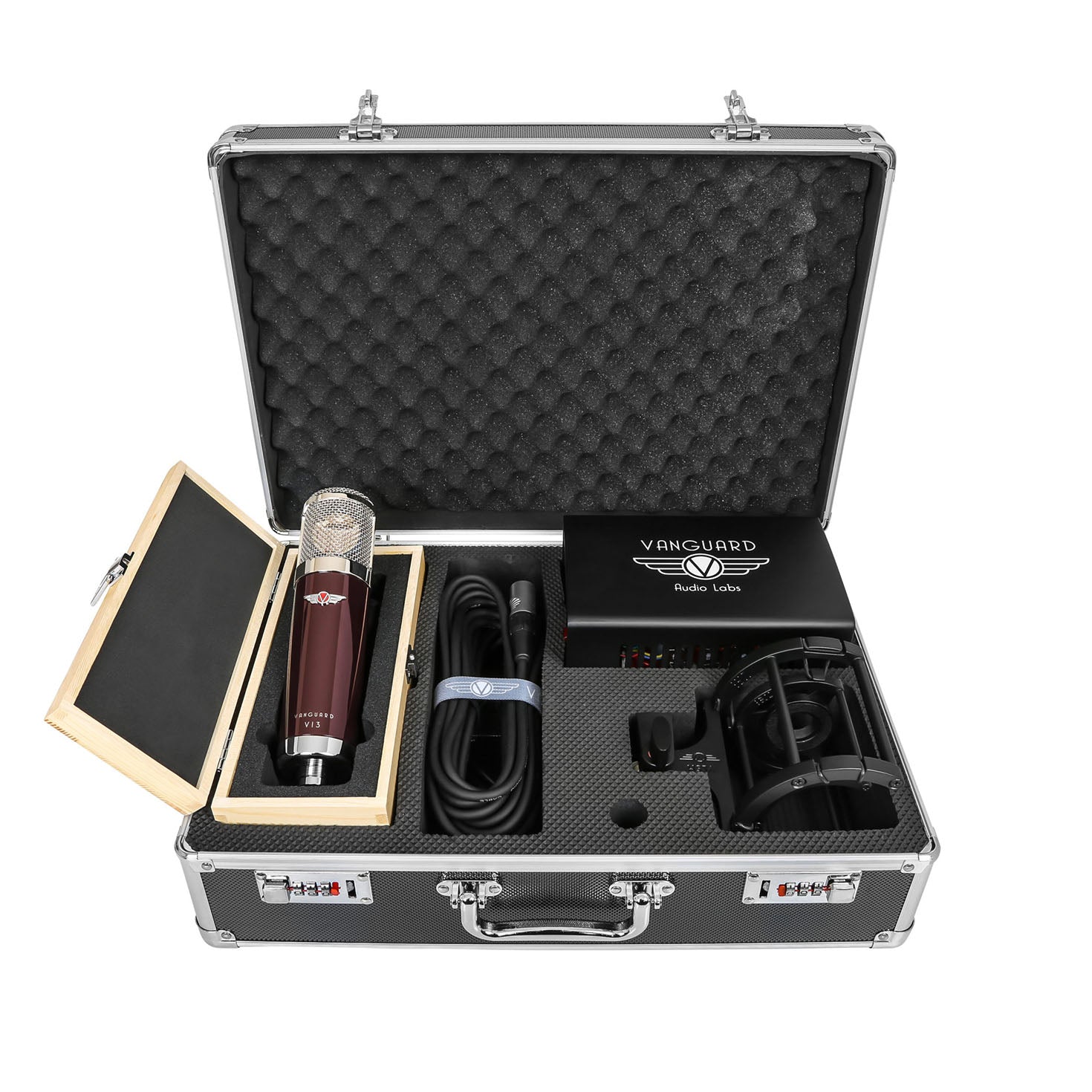

The V13 gen2 comes with a VLSM Heavy-Duty Shockmount with an open front so you can position the mic as close to the source as necessary, a stylish pine storage box, and a black aluminium locking carry case to keep your V13 gen2, power supply, cables and accessories all in one place (includes a slot for a spare vacuum tube).
For those who like to experiment with different tubes: 12AX7, 12AT7, and 12AY7 tubes all work with the V13 Microphone.
The V13 was designed by a team of experts with more than 65 years of experience and vetted by world-famous award-winning engineers and producers.
Features
- Custom-voiced, edge-terminated 34mm dual-capsule assembly with gold-sputtered Mylar diaphragms
- 9 polar patterns (selectable at power supply)
- Vacuum tube analog circuitry with premium-grade components
- Hand-selected European vacuum tube
- Deep-cycle cryogenic treatment of critical signal path components
- Transformer-coupled output - humbucking, shielded, dual-bobbin transformer
- -10dB pad and high pass toggle switches
- Robust redesigned power supply for ultra low noise floor
- Open weave headgrill for natural sound with low internal reflections
- Vanguard’s proprietary hand-tuned custom voicing
- Heavy-duty brass, aluminium, stainless steel, and zinc metal construction
- Rear venting to prolong tube and component life
- Each V13 comes with its own laser-engraved serial number
- Over specced components
- Deep-gloss Pinot Noir finish
- Polished nickel trim
- Precision-cast Vanguard badge
Specifications
- Transducer Type: Condenser
- Capsule Size: 1.34″ / 34mm (dual-capsule)
- Diaphragm Size: 1.04″ / 26.4mm
- Electronics Type: Valve/Tube, Transformer-Coupled Output
- Output Impedance: 200Ω
- Max SPL: 134dB (144dB with pad)
- Frequency Response: 20Hz-20000Hz
- Equivalent Noise Level: ≤13dB (A-weighted)
- S/N Ratio: ≥81dB (Ref. 1Pa A-weighted)
- Sensitivity: -35dBV
- Output Connector: Male XLR 7-pin gold-plated
- High-Pass/Rolloff Switch: 125Hz (6dB/octave)
- Attenuation/Pad Switch: -10dB
- Finish: Polished nickel trim / High-gloss Pinot Noir
- Weight (microphone): 1.07 lbs / 0.48kg
- Weight (in case): 11.67 lbs / 5.29kg
- Dimensions (microphone): 8.2″ long, 2.05″ diameter / 208mm long, 52mm diameter
- Dimensions (case): 16.73″L x 12.80″W x 5.25″H / 425mmL x 325mmW x 142mmH
- Voltage Requirement: 110-240V
Usually ships to you within ~2-3 days
