United Studio Technologies UT FET47 Large-diaphragm FET Condenser Microphone
SKU: UT Fet 47
$1,699.00
Questions? Spot a better price? Contact Us

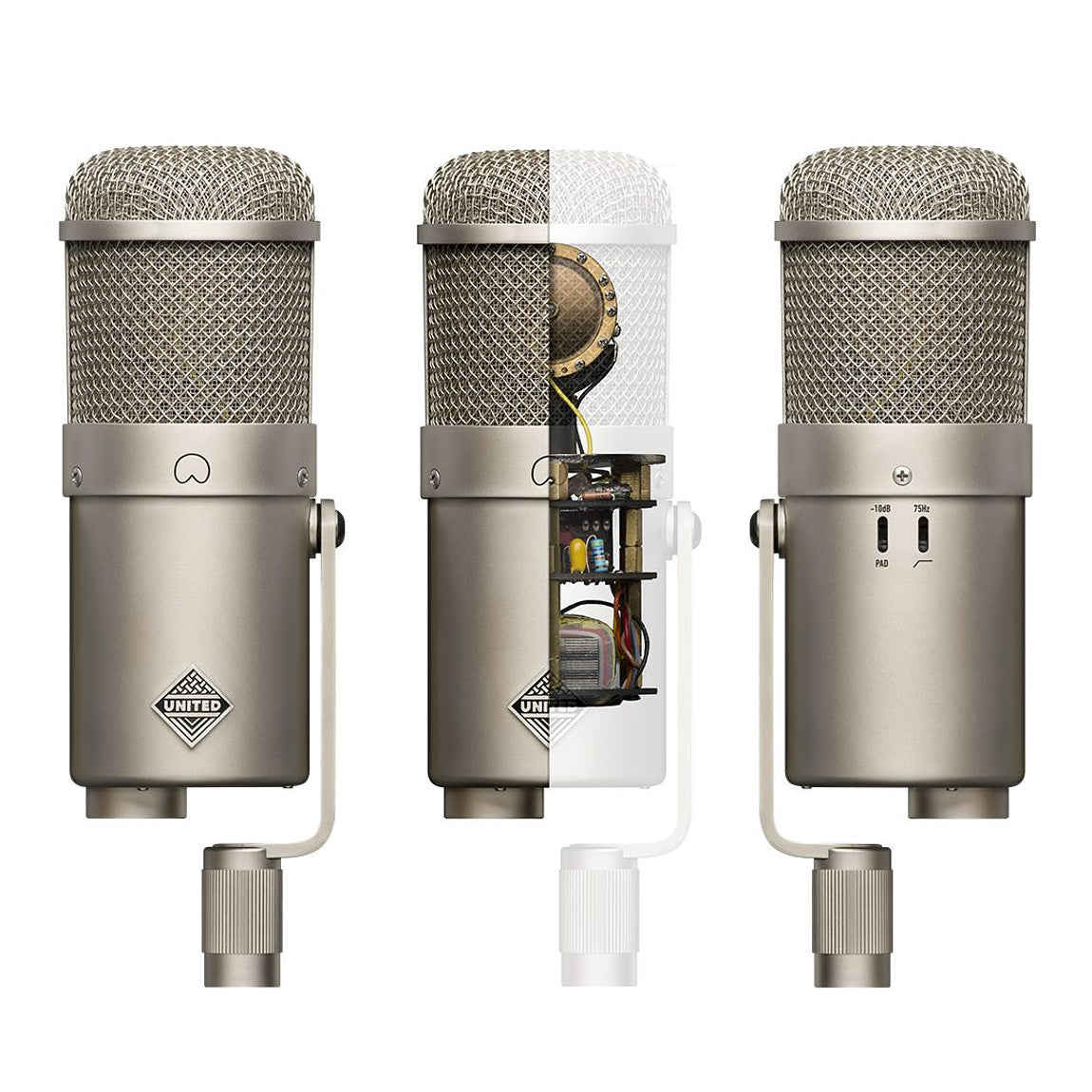

The UT FET47 uses United's HZ Series capsule - A 34mm, dual-backplate, all-brass design developed with capsule designer Eric Heiserman. Featuring a dual-diaphragm, 6-micron, 24k gold-sputtered Mylar element and a custom Cinemag USA output transformer.
United designed the HZ Series capsule for an open, detailed, three-dimensional sound, aiming to bring that vintage large-diaphragm character to a wider range of studios at a more accessible price point. The capsule's internal dampening also eliminates the need for a separate shockmount, since it's built into the mic itself.
It has a cardioid polar pattern with a frequency response 20Hz–20kHz, max SPL of 136dB (145dB with the -10dB pad engaged), self-noise under 10dB, and a 75Hz highpass filter.
47 Large-diaphragm Condenser Microphone Features:
- Heiserman designed HZ Series K47 capsule
- Custom wound Cinemag transformer
- Clean, clear, articulate, open sound
- Capsule: H Series 34mm all-brass dual backplate K47
- Diaphragm: Dual-diaphragm, 6 micron, 24K gold-sputtered Mylar
- Power Supply: +48v Phantom Power (via XLR)
- Frequency response: 20Hz–20kHz
- Polar Pattern: Cardioid
- SPL: 136dB (145dB with pad) @ .5% THD
- Output Impedance: 160 ohms
- Amplifer Type: Field Effect Transistor
- Self noise Output: <10dB (no pad, no HPF)
- Body: Nickel electroplated, solid milled brass
- Highpass filter: 75Hz
- Pad: 10dB
- Connector: XLR
- Crafted in the USA
Well suited to vocals, kick drum, toms, guitar and bass cabs, brass, and room capture, a flexible workhorse mic for tracking most sources.
"Sounds almost identical to its inspiration." (Neil Rogers, Sound on Sound)
Usually ships to you within ~2-3 days
