IK Multimedia iRig Stream Pro Ultracompact 4x2 Audio Interface angled top view, displaying its various input level controls, main output volume knob, headphone output, multiple inputs and indicator LEDs.
IK Multimedia iRig Stream Pro Ultracompact 4x2 Audio Interface

IK Multimedia iRig Stream Pro Ultracompact 4x2 Audio Interface

SKU: IP-IRIG-STREAMPRO-IN

$539.00

Free Shipping!

Questions? Spot a better price? Contact Us

Effortlessly stream multiple audio sources to your online audience with the IK Multimedia iRig Stream Pro Ultracompact 4x2 Audio Interface. This compact 4x2 audio interface is designed for easy compatibility with smartphones, tablets, and computers. It is perfect for musicians, podcasters, and social media creators, offering simple connections and controls for a user-friendly experience.

The iRig Stream Pro features a versatile XLR-1/4" combo input with +48V phantom power, accommodating both microphones and instruments. Additionally, the interface includes a stereo RCA input for connecting DJ mixers, mixing consoles, keyboards, or drum machines. With its 3.5mm TRRS port, you can easily add your voice to the stereo input by connecting a headset, headphones with a built-in mic, or other IK Multimedia devices, such as the iRig Mic Lav, iRig Mic, or iRig Pre (available separately).

The iRig Stream Pro also offers a convenient loopback function that allows you to merge the output from your device with the interface's input, then route it back to your device. This is particularly useful for singing or jamming along to a backing track, or for narrating a video. With the iRig Stream Pro, you can effortlessly enhance your online streams with professional-quality audio.

Specifications:

Display None
Channels of I/O 4 Inputs / 2 Outputs
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp
Input Level Adjustment 4 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range Mic Inputs:
40 dB
Hi-Z Inputs:
28 dB
High-Pass Filter None
Solo/Mute Mute per Input Channel
Connectivity

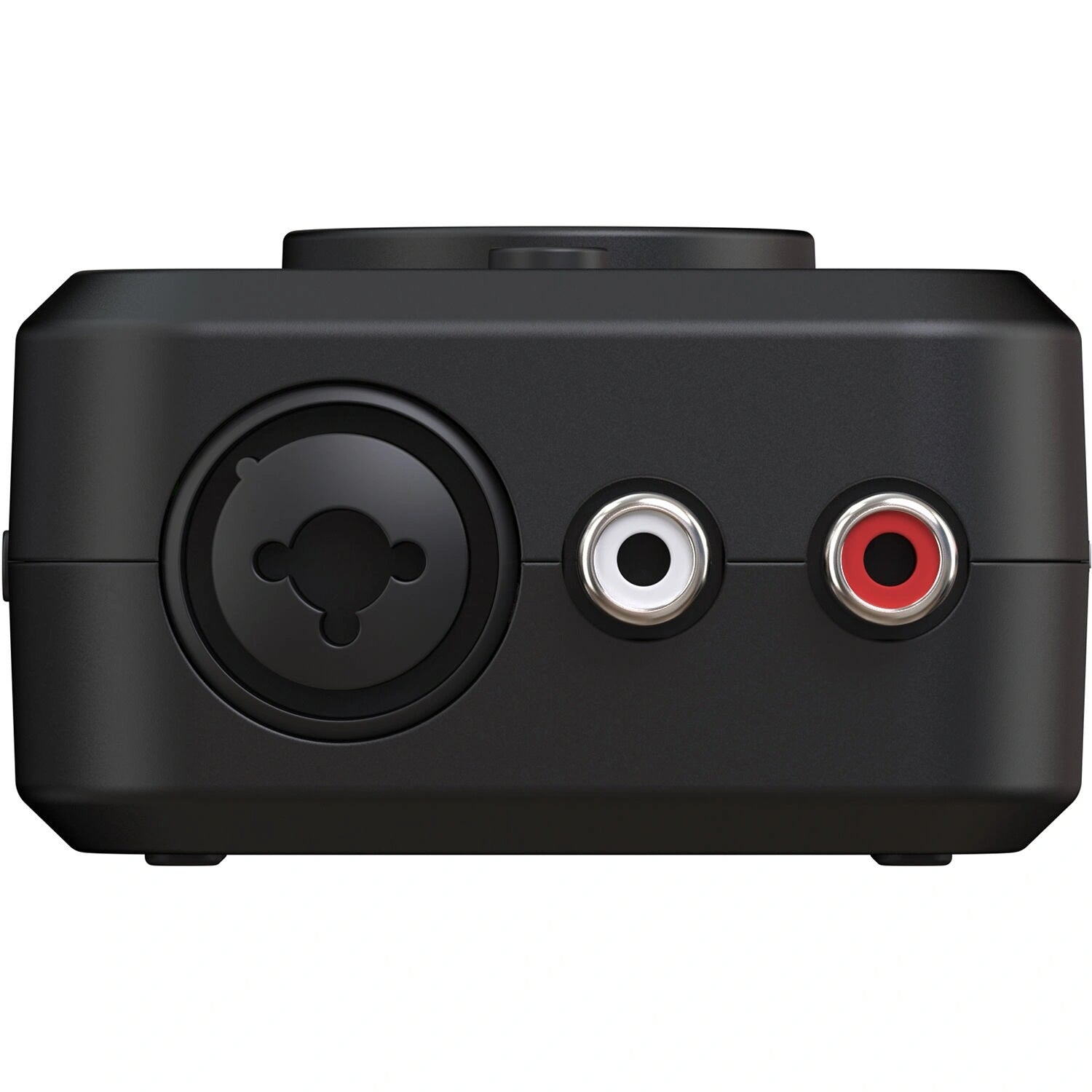

Analogue Audio I/O 1 x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input
1 x Stereo RCA Coaxial Unbalanced Line Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Headset In/Out (CTIA Wiring Standard)
1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power 48 V ± 4 V, Selectable On/Off
Digital Audio I/O None

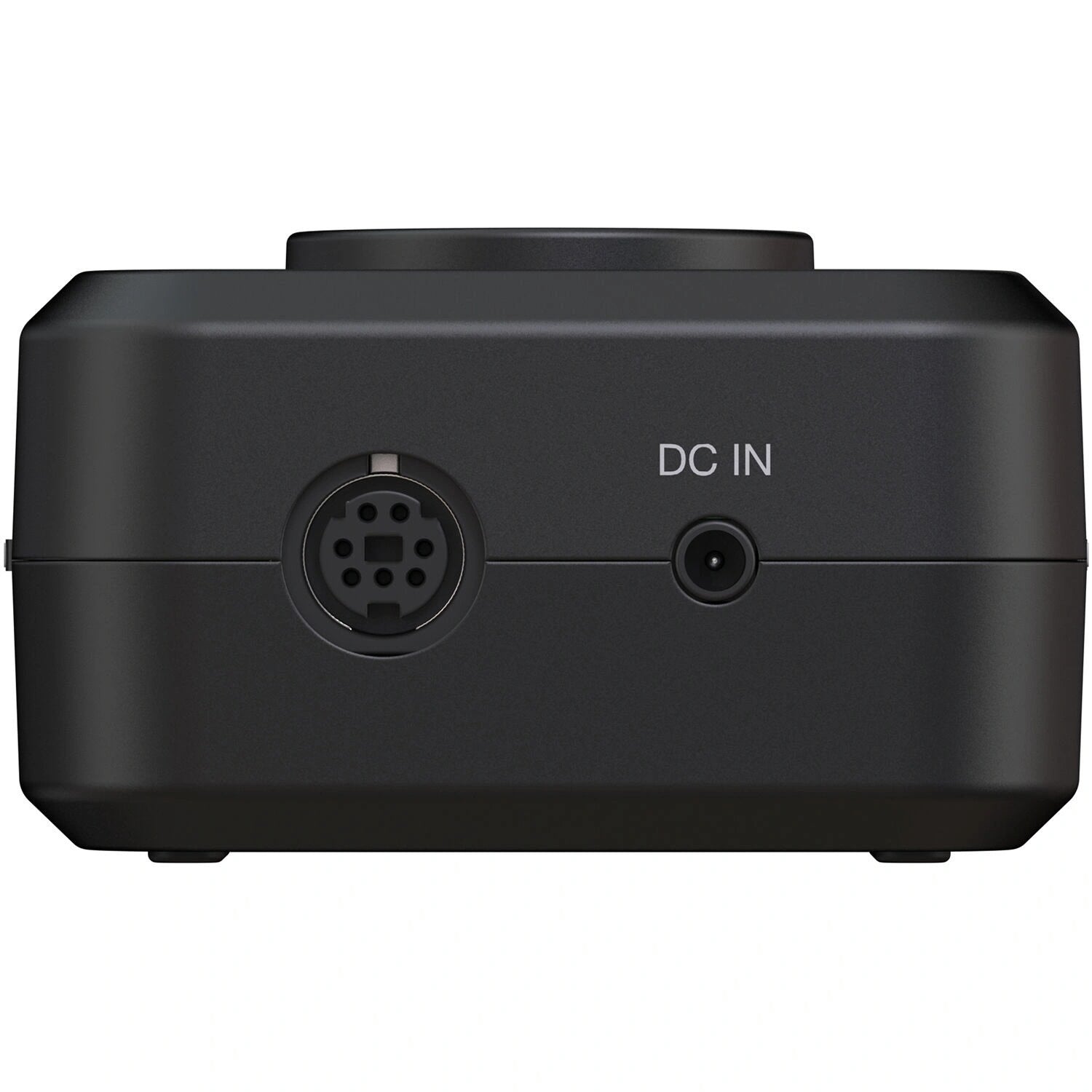

Host Connection 1 x Mini-DIN 8-Pin (on Interface)
1 x Lightning (with Included Cable)
1 x USB-A (with Included Cable)
1 x USB-C (with Included Cable)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Performance
Frequency Response Mic, Hi-Z Inputs:
20 Hz to 20 kHz -1 dB (Min Gain)
20 Hz to 20 kHz -3 dB (Max Gain)
Line Inputs:
20 Hz to 20 kHz -1.5 dB
Headphone Outputs:
20 Hz to 20 kHz
Impedance Mic Inputs:
2 Kilohms
Hi-Z Inputs:
1 Megohm
Line Inputs:
16.5 Kilohms
SNR Mic/Hi-Z Inputs:
80 dB (Min Gain)
70 dB (Max Gain)
Line Inputs:
84 dB (Max Gain)
Digital Audio
Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion None
Bit Depths 24-Bit (AD/DA Conversion)
Sync Sources Internal
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility macOS 10.6 or Later
Windows
iOS
iPadOS
Android 5 or Later
*As of November, 2021: Cheque with manufacturer for the most up-to-date compatibility
Included Software None
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Plug-Ins None
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
Windows Class-Compliant (No Driver Needed)
Android Class-Compliant (No Driver Needed)
Mobile Device Compatibility iPhone 6 or Later
iPad Pro 1st Gen., 2nd Gen. or Later
iPad Mini 5th Gen.
iPad Air 2
iPad 5th Gen., 6th Gen., 7th Gen., and 8th Gen.
iPod Touch 6th Gen., 7th Gen.
Android Tablet (with USB OTG (On-The-Go))
Android Smartphone (with USB OTG (On-The-Go))
Required Hardware Available Lightning Port, USB-A Port, or USB-C Port
Micro-USB OTG to Mini-DIN Cable (Not Included, for Android Devices)
Internet Connection Required for Software/Driver Download
Power
Power Requirements AC/DC Power Adapter (Not Included), Battery, or USB Bus Power
AC/DC Power Adapter 5 VDC at 3 A (Not Included)
Battery Type 2 x AA
Approximate Battery Life 20 Hours (AA Alkaline, Phantom On)
Physical
Dimensions 4.84 x 2.63 x 1.57" / 12.29 x 6.68 x 3.99 cm
Weight 5.2 oz / 146.0 g
