Heritage Audio - BritStrip Channel Strip
SKU: HA_BRITSTRIP
Sale price
$3,899.00
Regular price
$3,999.00
Questions? Spot a better price? Contact Us

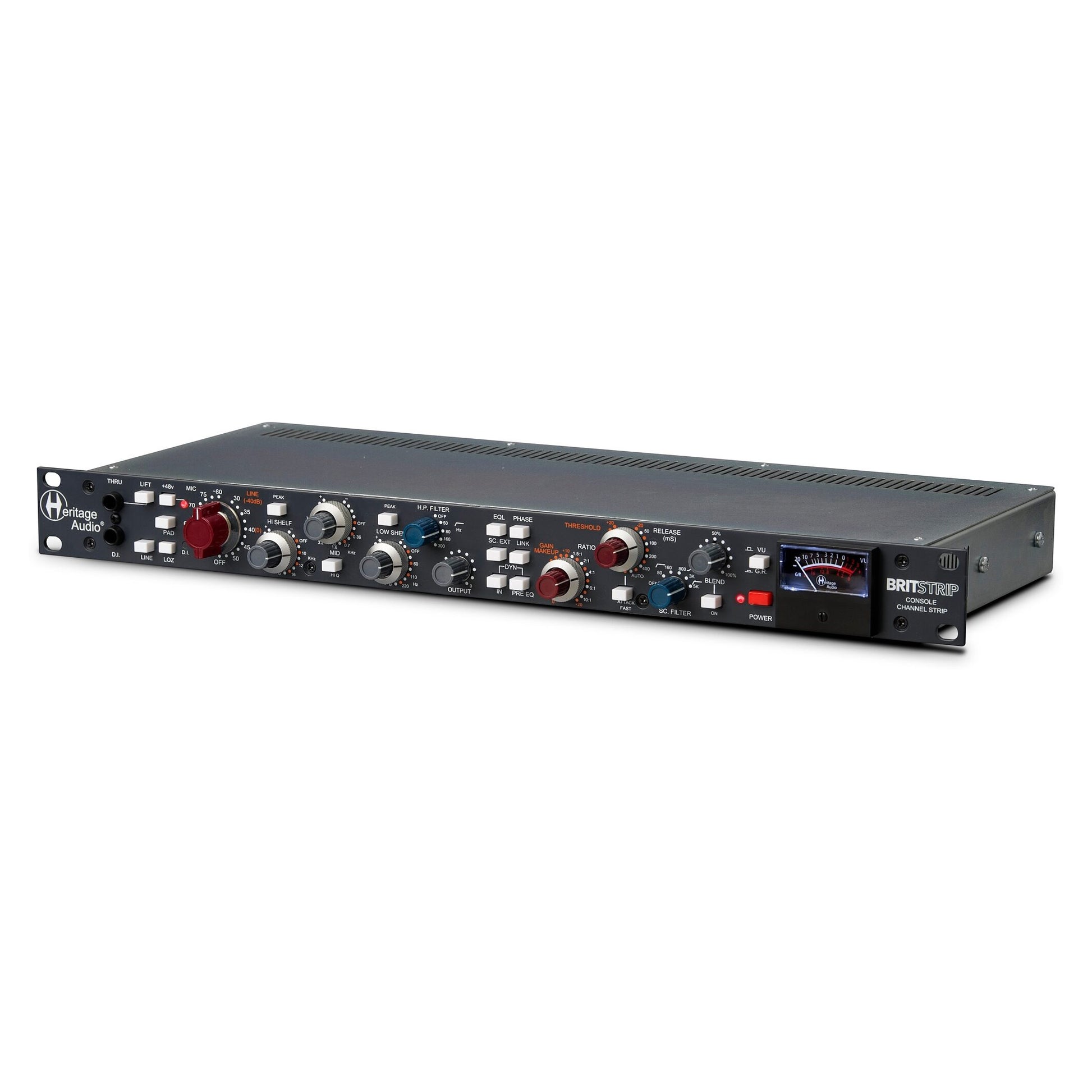

The Heritage Audio BritStrip is a single-rack-unit channel strip combining a 1073-style mic preamplifier, an expanded 1073-style three-band EQ, a Class A DI, and the diode-bridge compressor originally developed for Heritage Audio's Successor. It's built around the same discrete, three-stage Class A preamp circuit as Heritage's 73 JR II, paired with a new input transformer co-designed with Carnhill exclusively for Heritage Audio, plus a matching Carnhill output transformer.
The preamp offers 80dB of gain, a 20dB pad, phase reversal, and switchable input impedance (1200Ω or 300Ω), the higher setting useful for ribbon microphones. The Class A JFET DI section includes a passive thru output so you can feed a separate amp at the same time as recording. The three-band EQ uses inductor-based mid and high-pass sections, with extended high and low shelving bands that can switch to a bell response for more surgical work.
The compressor section is a mono version of the diode-bridge design from Heritage's Successor, with faster attack and release times than the vintage originals it's inspired by, a blend control for built-in parallel compression, and a flexible sidechain with several selectable filter frequencies plus an external sidechain send/return. EQ and compression can be routed either pre or post each other, and two BritStrips can have their compressors linked for stereo tracking.
Key features
- 1073-style mic preamp, EQ, Class A DI, and diode-bridge compressor in one rack unit
- Discrete, 3-stage Class A preamp with custom Carnhill input and output transformers
- Switchable preamp input impedance (1200Ω / 300Ω), useful for ribbon mics on the high setting
- Inductor-based 3-band EQ, switchable shelf/peak high and low bands, adjustable-Q midrange
- Diode-bridge compressor with blend control (parallel compression) and multi-frequency sidechain filtering
- Two units can link compressors for stereo tracking
- Switchable pre/post EQ and compressor routing
Specifications (Mic Pre Section)
| Mic Input Impedance | 1200Ω (HI) / 300Ω (LO) minimum, transformer balanced |
| Line Input Impedance | 10kΩ bridging, transformer balanced |
| DI Input Impedance | Greater than 2MΩ, unbalanced |
| Output Impedance | Less than 75Ω, transformer balanced (600Ω load) |
| Maximum Output | Greater than +26dBu into 600Ω |
| Maximum Gain | Slightly greater than 80dB |
| THD | <0.025% @ 1kHz, <0.05% @ 100Hz |
| Frequency Response | 20Hz (+0.3dB) to 20kHz (-0.2dB) |
| Noise | Less than -125dBu EIN |
| Dimensions (W x H x L) | 482 x 44mm (1U) x 184mm |
Perfect for tracking vocals, acoustic instruments, bass, and guitar direct, or as a flexible mix-stage front end where the preamp, EQ, and compressor can each be used independently.
Please allow ~10-14 days for delivery
