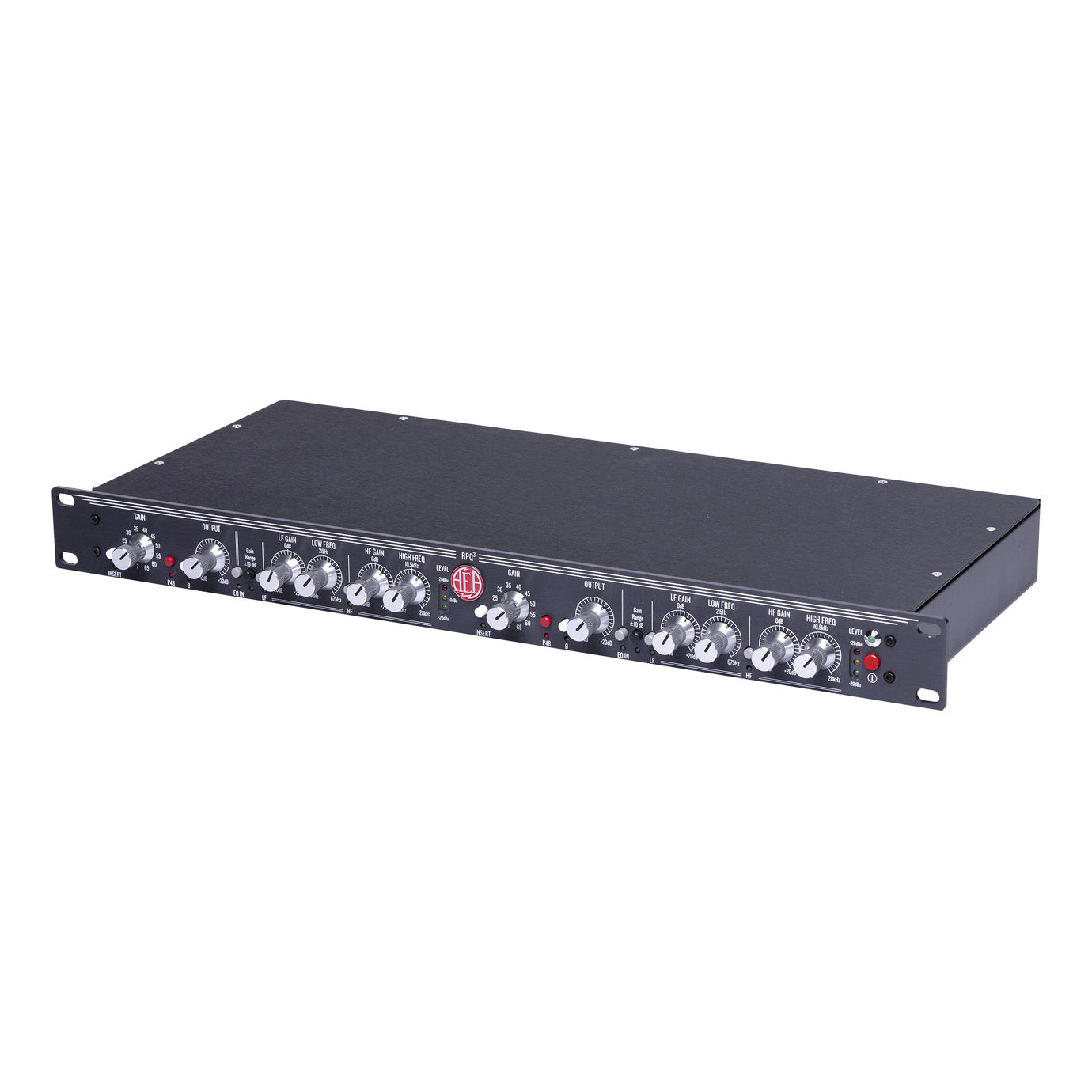

AEA RPQ3 2-channel Ribbon Microphone Preamp and EQ

Dual-channel microphone preamp specifically designed for ribbon microphones featuring 85 dB of JFET gain, high-frequency CurveShaper EQ, low frequency proximity control, and post-mic and pre-EQ inserts for convenient routing options

The AEA RPQ3 preamp and EQ utilises AEA’s newest 3rd generation circuit design. Two channels of high-output, high-impedance, and low-noise gain with a unique EQ architecture optimises the performance of your microphones. Specifically designed for ribbon microphones, the RPQ3 excels at drawing out the warmth and lush sound that ribbons are uniquely known for.

Gain Powerhouse

The RPQ3 is a powerhouse that provides unparalleled high gain with low-noise. With 85 dB of JFET output, the RPQ3 gives you enough juice to record soft sources without ever having to worry about noise. The RPQ3 is the tool of choice for all microphones whenever a true and pristine signal path is desired. Our 3rd generation circuitry is the cleanest and most musical design we’ve done yet.

CurveShaper EQ

The RPQ3’s CurveShaper EQ is a powerful tool that gives you the ability to control your microphone right at the start of the signal path. The updated adjustable boost/cut low and high-frequency controls allow you to tame proximity problems and provide high-frequency extension with slope control. The high-frequency filter boost enables you to add presence and air to your source – perfect for sources like ribbons and 2-busses that often benefit from some extra top-end. The low-frequency control easily removes bass build-up in a fast and unobtrusive way.

High impedance makes a huge difference

The sound and tonality of dynamic microphones like ribbons and moving-coils are directly affected by the impedance of a preamp. The higher the impedance, the better the sound. The RPQ3 boasts an extra high input impedance of 68 kOhms (phantom power off). Preamps with an impedance of under 10 kOhms will limit the lows, highs, and transients of your passive microphones. The RPQ3’s high impedance will reveal your microphone’s true nature– a thick low-end, open top-end, and articulate transient response that you will need to hear to believe. Both condensers and active microphones also benefit from the RPQ3’s impedance.

Exceptional Preamps

The worlds best microphones, coupled with AEA’s range of transparent preamps, are the key choice for discerning recordists who want total control over their signal path. AEA offers the RPQ3, RPQ500, TRP3 and TRP500 microphone preamps, all of which provide clean gain and ultra high impedance to open up the sound of your microphones. All AEA Ribbon Preamps all share the same topology and sound. The differences between each unit come down to extra EQ features and form factor.

Features:

• Two channels with 85 dB of sweet, quiet, and mouthwatering JFET gain
• High-frequency CurveShaper EQ and low frequency proximity control
• 68k ohm high-impedance circuitry providing better overall transients, frequency response, and higher output sensitivity
• Post-Mic and Pre-EQ Inserts for convenient routing options
• Switchable phantom-power and polarity invert
• Made in the U.S.A.
